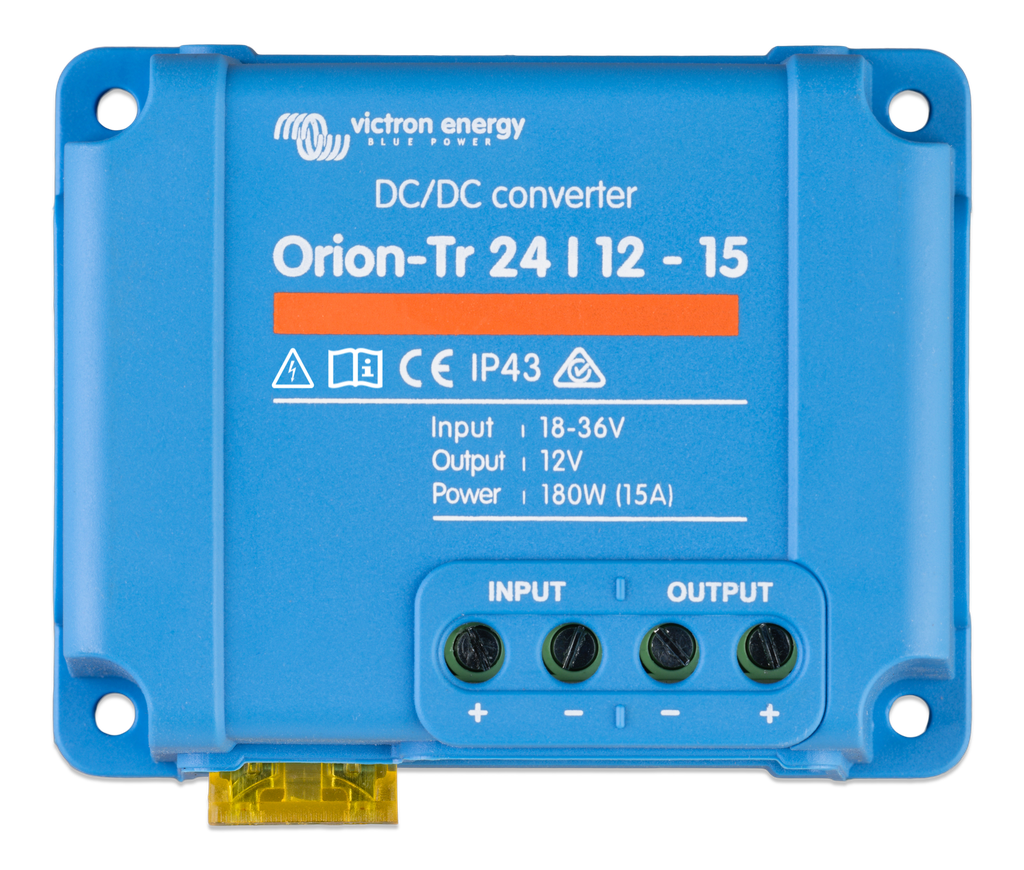

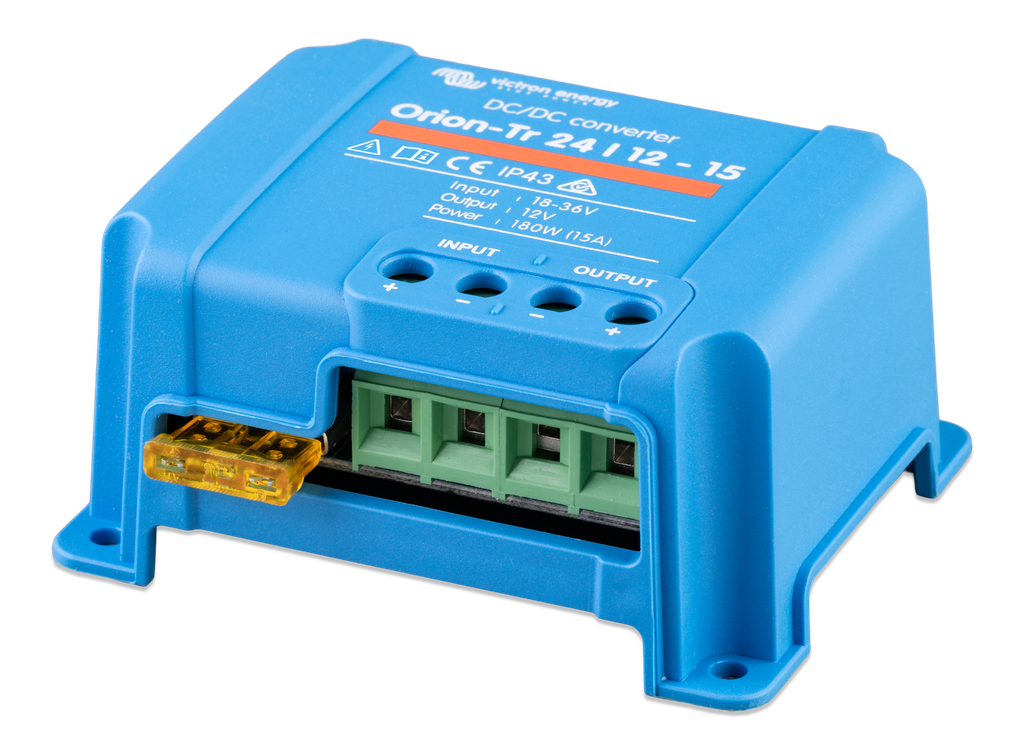

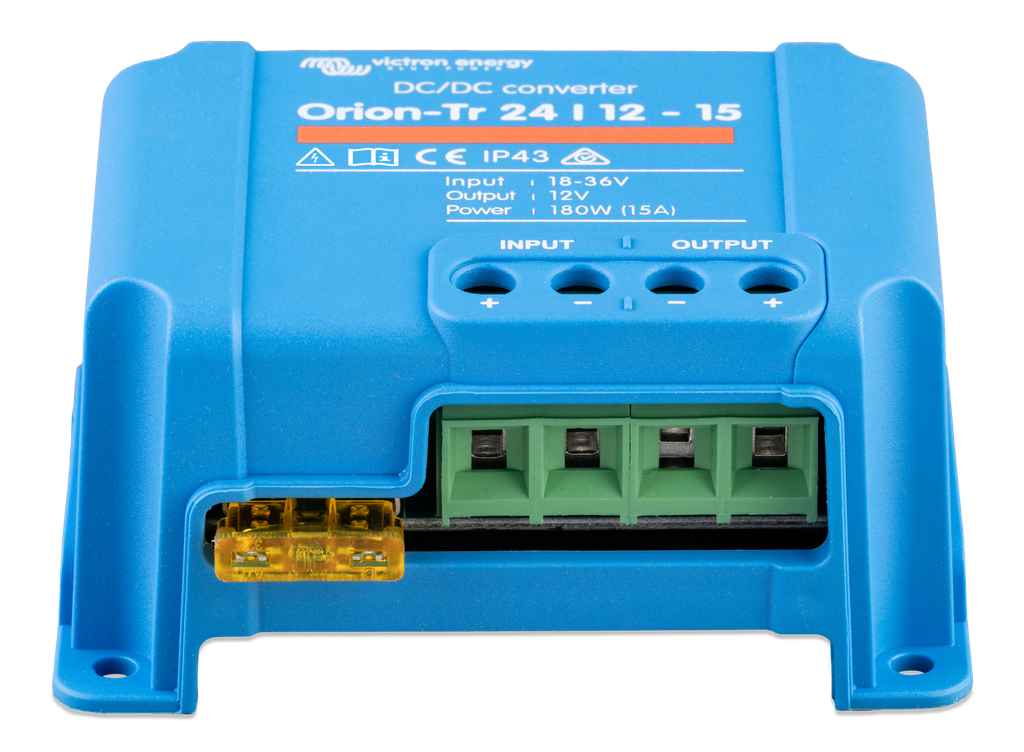

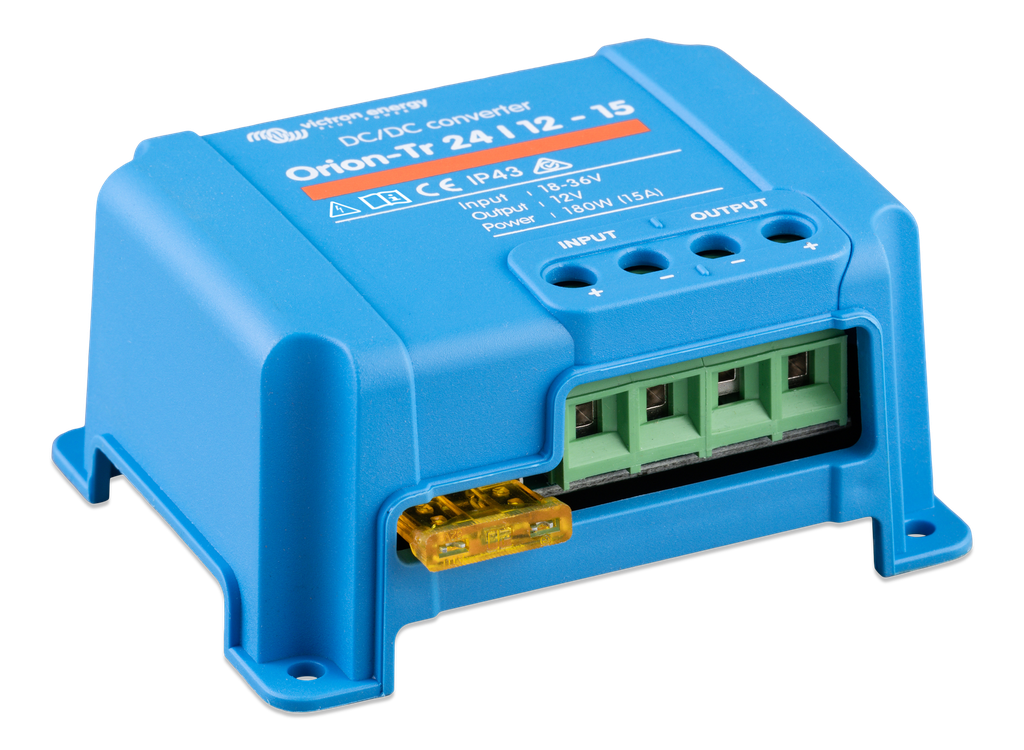

Orion-Tr 24/12-15 (180W) DC-DC converter
High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.
Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
| DC/DC Input Voltage (V): 24 |
| DC/DC Output Voltage (V): 12 |
| DC/DC Output Current (A): 15 |
Documents
Internal Reference:
ORI241215200
